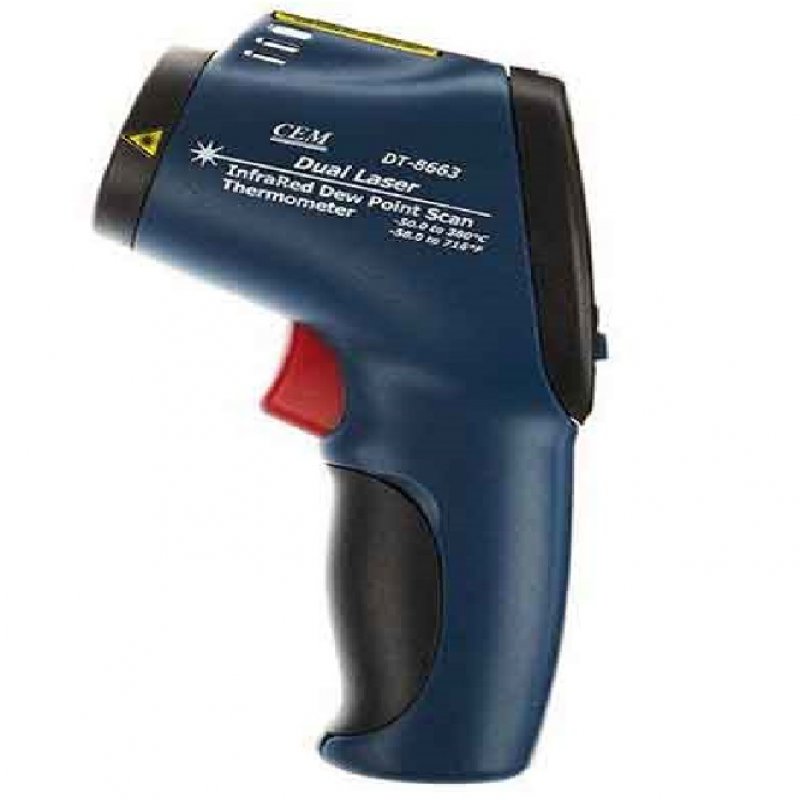

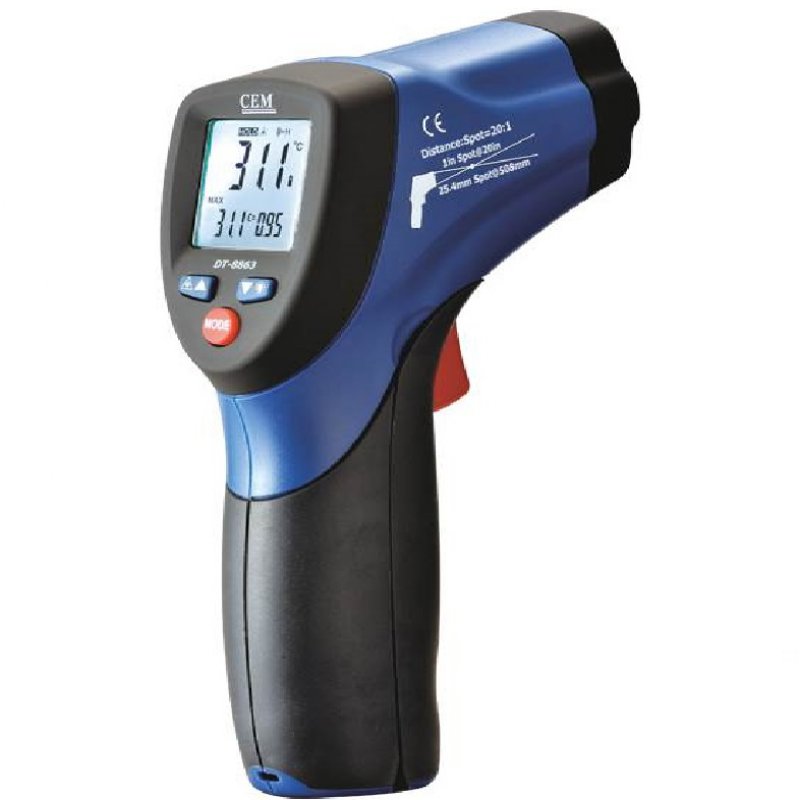

DT-8663 Dew Point Temperature

Please Contact Company


Existent

Visited 503 times

DT-8663 series Infrared Dewpoint Temperature Detectors are very visiable for wet and dry proof. The green LED light will change to yellow and red when reading close to Dewpoint Temperature. It provides faster sampling time and high accuracy, widely applied in steel, oil & chemical, stove, environment testing, calibration lab, gas production industry etc.

  • IR Temp. Range: -50ºC to 380ºC / -58ºF to 716ºF
  • IR Temp. Resolution: 0.1º
  • Emissivity: 0.95
  • Temp. Basic Accuracy: ±1.0% of reading
  • Spectral response: 8-14µm
  • Humidity: 0~100% RH

DT-8663 can measure the environment temperature, humidity and dew point temperature by infrared sensor and humidity sensor, can be used in the place of wall, carpet, warehouse and so on for finding the place of mildew, high and low temperature.

Features:

  1. User selectable ℃ or ℉
  2. Dual laser targeting
  3. Automatic data hold
  4. Auto power off
  5. White backlit LCD display
  6. Overrange indication
  7. Trigger lock for continuous use
  8. Max display
  9. Optical Resolution 20:1
  10. Green LED light will change to yellow and red when reading close to Dewpoint Temperature.

Specification:

  • IR Temp. Range: -50 to 380℃ / -58℉ to 716℉
  • Response Time: Less than 150ms
  • Resolution: 0.1°
  • Basic Accuracy(IR): ±1.0% of the reading
  • Optical Resolution: 20:1 Distance to Spot Size
  • Emissivity: 0.95
  • Humidity Range: 0~100%RH
  • Humidity Basic Accuracy: ±2.5%RH
  • Dew Point Temp. Range: -30 to 100℃ / -22 to 199℉
    Basic Accuracy: ±2.5% of reading
  • Wet Bulb Temp. Range: -30 to 100℃ / -22 to 199℉
    Basic Accuracy: ±2.5% of reading
  • Size(H*W*D): 82mm*58mm*168mm
  • Weight: 163g

Accessories: 9V Battery, Carrying Case and Gift box.
