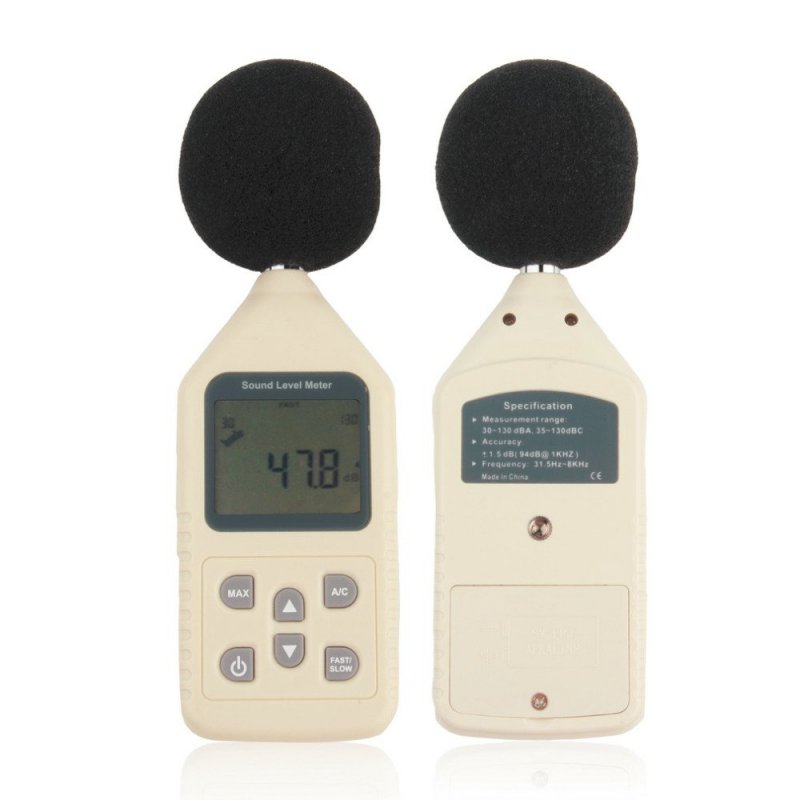

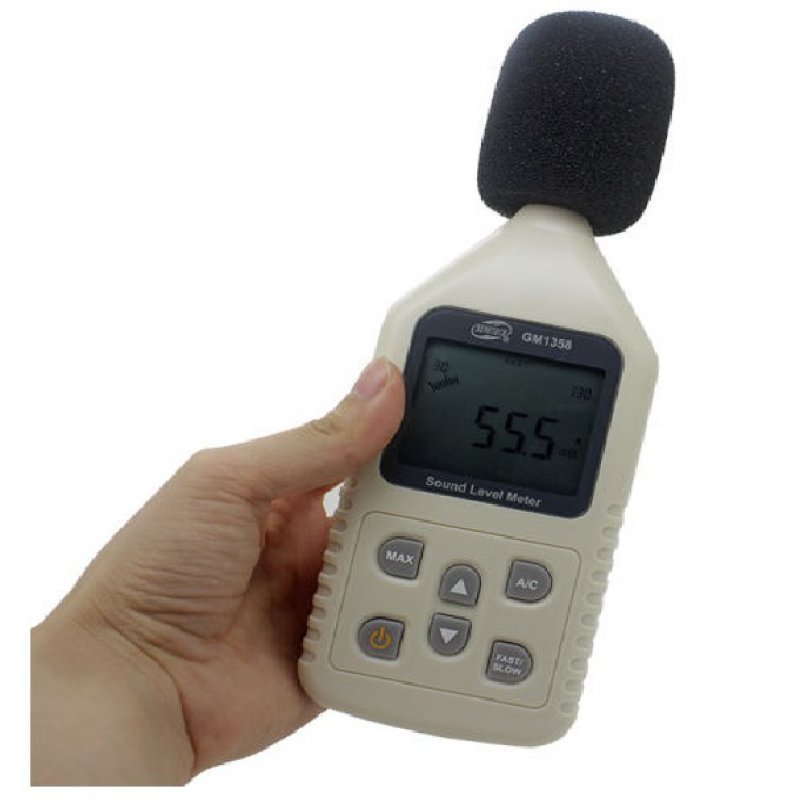

GM1358 Sound Level Meter

Please Contact Company


Existent

Visited 507 times

This unit was designed according to following standards:
A. International electrician committee standard: IEC PUB 651 TYPE2
B. US national standard: ANSI S1.4 TYPE2

  • Measuring range: 30~130 dBA 35~130 dBC
  • Accuracy: ±1.5 dB
  • Frequency response: 31.5Hz ~8.5KHz

This unit was designed according to following standards:
A. International electrician committee standard: IEC PUB 651 TYPE2
B. US national standard: ANSI S1.4 TYPE2

Measuring range: 30~130 dBA 35~130 dBC

Accuracy: ±1.5 dB

Digit & Resolution: 5位 & 0.1 dB

*Frequency response: 31.5Hz ~8.5KHz

*Measuring level: 30~130, 40~90, 50~100, 60~110, 80~130

Frequency weighting characteristic: A & C

Time weighting: FAST/SLOW

Sampling rate: 2times/second

Microphone:1/2 inch polarization capacitance microphone

AC/DC output

Max reading

Overload indication: OVER / UNDER

Low battery indication

Auto power off / Cancel “Auto power off
