GM63B Ultrasonic Vibro Meter

Company Details

  • Name : Farhan Gostar Co.
  • Phone Numbers : 9034119385 9902782086
  • Mobile : 09133390223
  • Number of registered products : 100

LOADING IMAGES
GM63B Ultrasonic Vibro Meter GM63B Ultrasonic Vibro Meter



GM63B Ultrasonic Vibro Meter

Please Contact Company


Existent

Visited 536 times

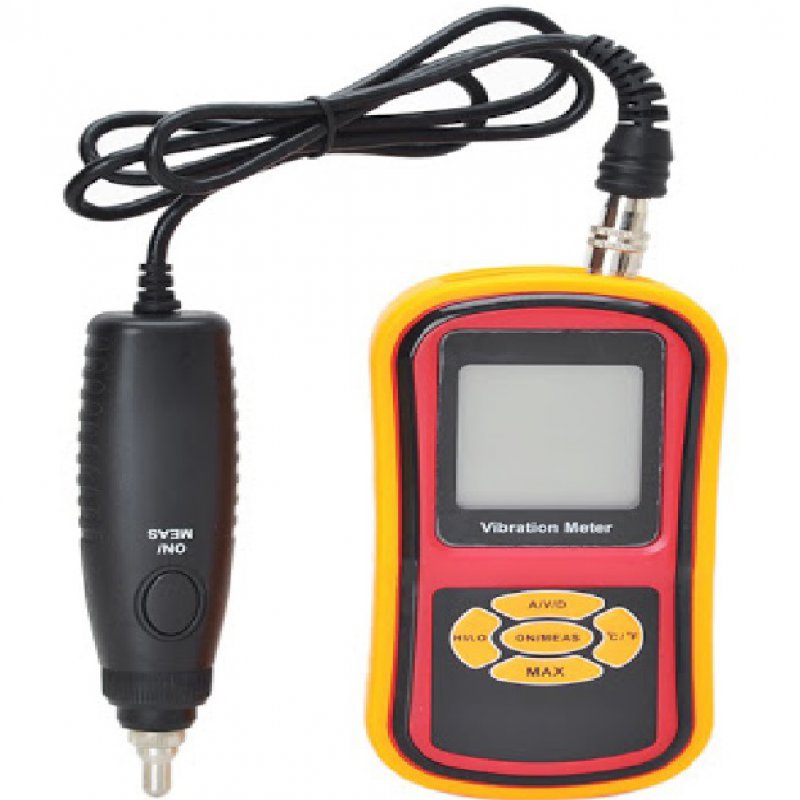

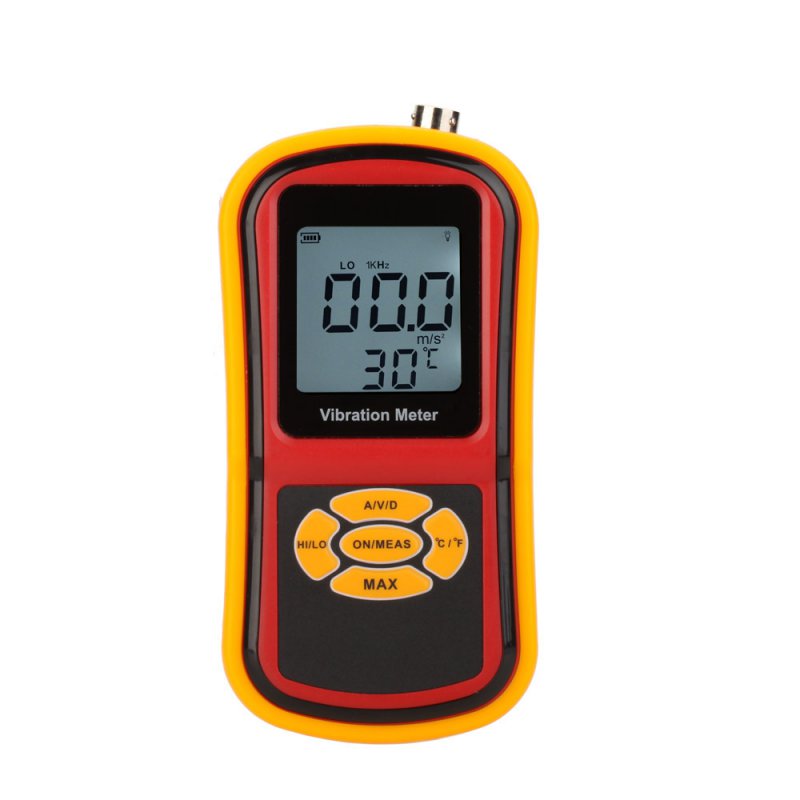

GM63B Portable High Precision Ultrasonic Vibro Meter Digital LCD Vibration Meter Analyzer Temperature Meter with Probe 0-40℃

  • Operating humidity: 30-90%RH
  • Temperature range: -10℃-80℃
  • Measurement range: 0.1-199.9mm/s rms

Contact Company

Specification:
Condition: 100% Brand New
Model: GM63B
Technical parameter--Technical specification
Vibration pickup:Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration:0.1-199.9m/s
Measurement range of velocity:0.1-199.9mm/s rms
Measurement range of displacement:0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s2
Measurement accuracy:±5%±2digits
Measurement frequency range of acceleration:10Hz-1KHz (LO) 1KHz-15KHz (HI)
Measurement frequency range of velocity:10Hz-1KHz (LO)
Measurement frequency range of displacement:10Hz-1KHz (LO)
Displays update cycle:1 seconds
LCD display:3 1/2 digits display
Single output:AC output 2 V peak (display full scale) Load impedance 10KΩ or more earphones can be connected
Power supply:9V battery(not included)
Stand-by current:≤15uA
Operating current:≤25mA
Battery life:20 H continuous use
Auto power-off function:Turns off automatically after 60 seconds
LCD backlight function:7 seconds
Operating temperature range:0-40℃
Operating humidity range:30-90%RH
Low battery indication:6.4V±0.2V
Temperature range:-10℃-80℃
Temperature accuracy:±2℃
Weight: Approx. 1104g / 38.9oz
Size: Approx. 72 * 35 * 145mm / 2.8 * 1.4 * 5.7in
